tms2 图像近似检索接口

  • 请求地址:

    地址:https://open.cnipr.com/cnipr-api/rs/api/trademark/tms2/{client_id}?openid={openid}&access_token={access_token}

  • 请求方法:

    HTTP POST

  • 请求参数:

    client_id,openid,access_token,dbs,exp,filter,from,size,order,displayCols,imgContent,imgMinScore 参数含义见外观附录-检索分析参数

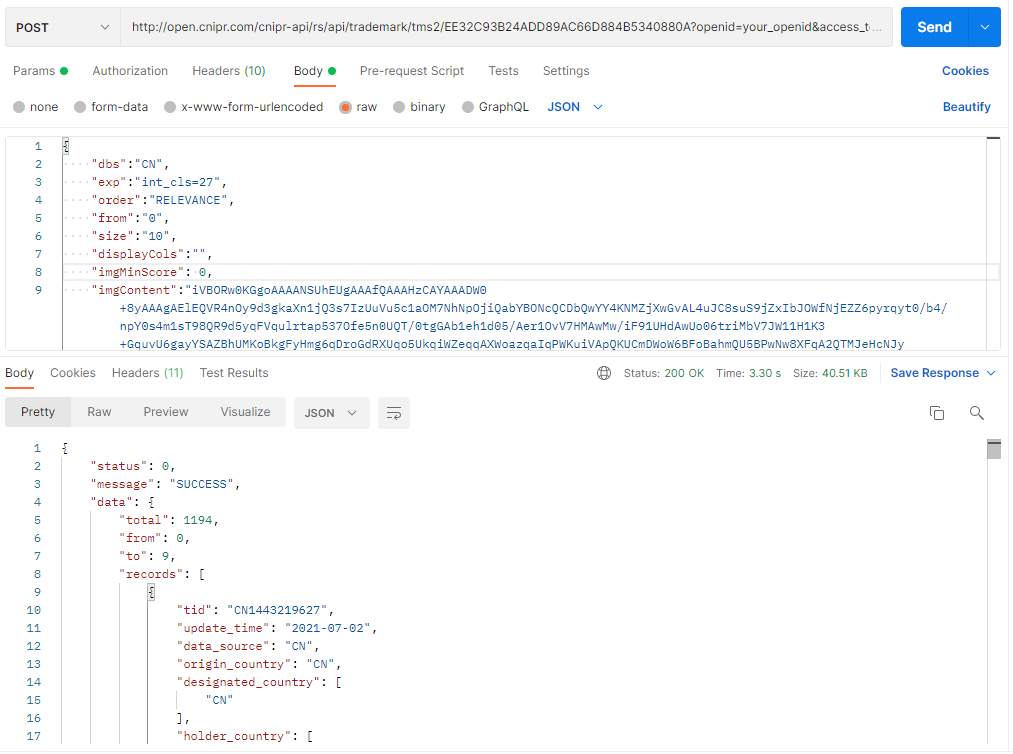

  • Postman 调用展示
  • 部分请求参数如下:
    {
        "exp":"int_cls=27",
         "dbs":"CN",
         "order":"+app_date",
         "from":"0",
         "size":"10",
         "displayCols":"",
         "imgMinScore":90,
         "imgContent":"Base64"
    }

  • Java + HTTP POST
    public class SearchClientTest {

    	String client_id = "";
    	String openid = "";
    	String access_token = "";

    	/**
    	 * 表达式+名称检索
    	 */
    	public void tms2Test() throws Exception {
            String url = String.format("https://open.cnipr.com/cnipr-api/rs/api/trademark/tms2/%s?openid=%s&access_token=%s",
                    client_id, openid, access_token);
            String json = "{ \n" +
                    "    \"exp\":\"int_cls=27\",\n" +
                    "     \"dbs\":\"CN\",\n" +
                    "     \"order\":\"+app_date\",\n" +
                    "     \"from\":\"0\",\n" +
                    "     \"size\":\"10\",\n" +
                    "     \"displayCols\":\"\",\n" +
                    "     \"imgMinScore\":90,\n" +
                    "     \"imgContent\":\"Replace with Base64 Data\"\n" +
                    "}";
            String result = POST(url, json);
            System.out.println(result);
    	}

    	public String POST(String url, String json) throws Exception {
    		HttpClient httpClient = HttpClients.createDefault();
    		HttpPost httppost = new HttpPost(url);
    		httppost.setHeader("ContentType", "application/json");

    		StringEntity entity = new StringEntity(json, "UTF-8");
    		entity.setContentType("application/json");
    		httppost.setEntity(entity);

    		HttpResponse response = httpClient.execute(httppost);
    		HttpEntity result = response.getEntity();
    		String ss = EntityUtils.toString(result, "UTF-8");
    		EntityUtils.consume(entity);
    		return ss;
    	}
    }

  • Java 获取图片Base64数据
    /**
     * @Description: 根据图片地址转换为base64编码字符串
     */
    public static String convertImageToBase64String(String imgFile) {
    	InputStream inputStream = null;
    	byte[] data = null;
    	try {
    		inputStream = new FileInputStream(imgFile);
    		data = new byte[inputStream.available()];
    		inputStream.read(data);
    		inputStream.close();
    	} catch (IOException e) {
    		e.printStackTrace();
    	}
    	return Base64.getEncoder().encodeToString(data);
    }

  • 响应参数:
    属性名称 属性说明 属性类型
    status 状态码,0代表成功,其它值含义见附录 long
    message 响应的信息描述 String
    total 命中总数 long
    from 分段检索,开始值 int
    to 分段检索,结束值 int
    records 检索结果 List<商标详细信息> -- 数据详细
段含义见商标附录-字段
